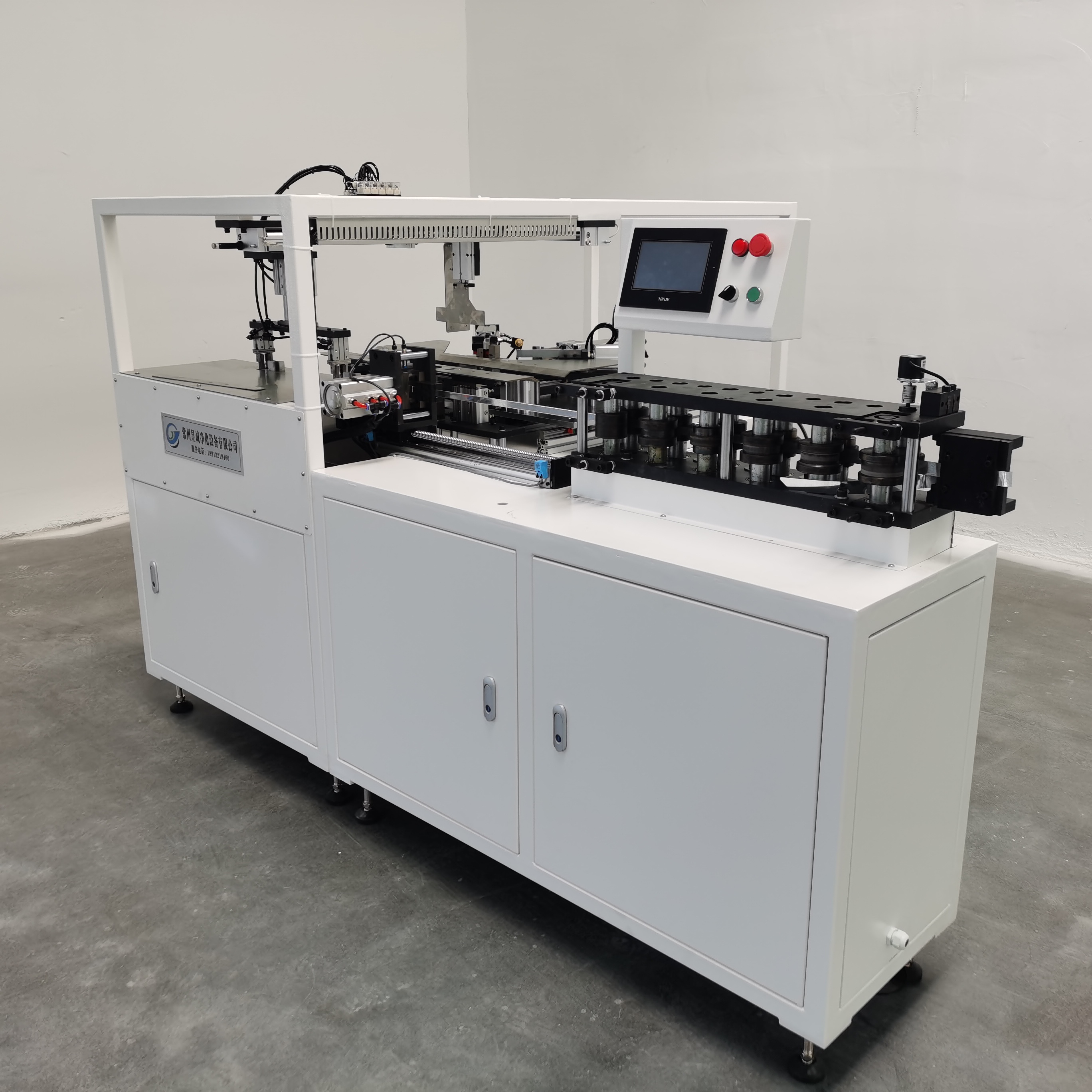

L-shaped inner frame bending machine

Use Mainly used for one-time molding of 13-18mm inner frame of bag filters
Production speed 500-700 pieces/hour
Whole machine power 4.5kw
Gas consumption 12.5L/min
Size 2800×1500×1700mm
Weight 580kg
Applicable product range width 42-150mm, length 270-700mm
+86 18913219460
Detail



Product Details:

The L-shaped inner frame bending machine is mainly used for one-time forming of 13-18mm inner frames in bag filters.


Fully automatic size adjustment, pressure wheel made of Cr12 material, vacuum quenching treatment. Pneumatic cutting speed is fast, pneumatic bending positioning is accurate, and the head and tail riveting connection structure is firm.



Equipment Features:

1. Accurate length control with an error of within 1mm;

2. Servo motor control, adjustable speed;

3. Human machine control, simple and intuitive;

4. With counting detection function, it can be operated unmanned;

5. Comes with an automatic feeding rack.
