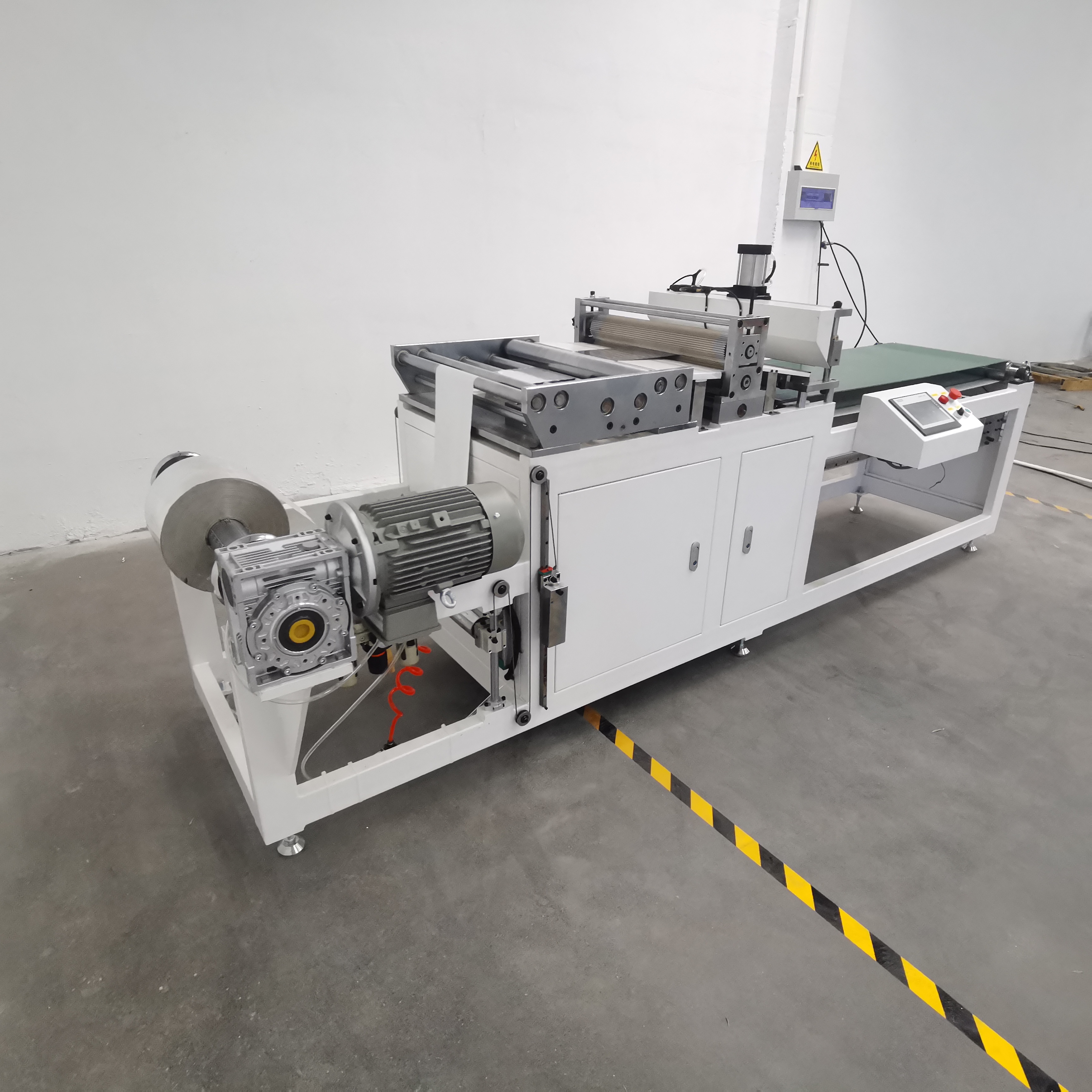

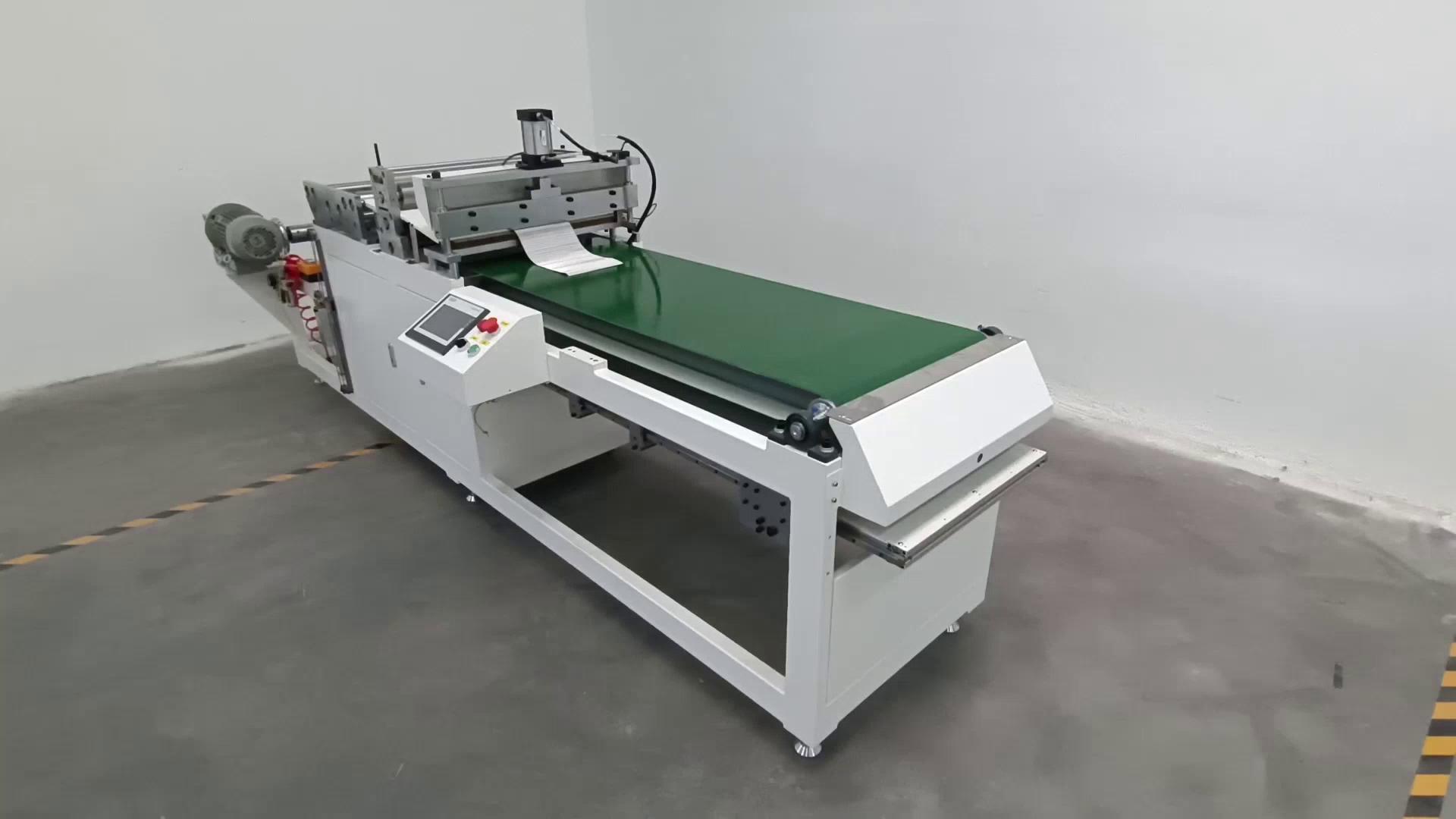

Aluminum partition corrugated machine

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Use Mainly used for efficient partition forming of products with partitions, suitable for aluminum foil material, wave characteristics can be customized
Production speed 10片/分钟
Whole machine power 3~380V,3kw
Gas consumption 7.5L/min
Size 3880×1300×1350mm
Weight 350kg
Maximum roll diameter of mater 450mm
Temperature setting 0－250゜
+86 18913219460
Detail



Product Details:

Aluminum partition corrugated machine is mainly used for efficient partition forming of products with partitions,

Suitable material: aluminum foil, wave characteristics can be customized.


The raw material shaft adopts a safety chuck design, with a large load-bearing capacity and high safety. The aluminum foil flipping mechanism, transverse tension floating drum, and magnetic grating ruler control the feeding motor speed to achieve transverse tension feeding and precise cutting speed. Wear resistant, long lifespan, and smooth molding.




Equipment features:


1. This machine adopts PLC human-machine control, which is easy to operate;

2. With aluminum foil flipping, the width can be adjusted by 2-5mm;

3. Tension feeding ensures uniform and consistent molding;

4. Using an encoder for length measurement with high accuracy;

5. Equipped with an automatic cutting and receiving mechanism.
